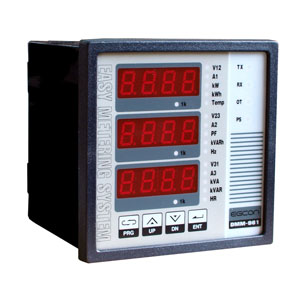

| DMM-961 |
 |
Features
1. Measurable unit : V, A, Hz, kW, kVAR, kVA, kWh, kVARh, Temp.
2. Accuracy : 1.0%
3. Indicate incorrect input connection via input check
4. Easy communication status check through lamp
5. Turn lamp on and output relay contact when
over set temp
6. Can check operating time
Specifications
1. Measurable Range : 600Vac, 5A
2. Power Input : 85~265Vac, 100~300Vdc
3. Dimensions(mm) : W96 * H96 * D100
4. Cut-out(mm) : W91 * H91
5. Weight(g) : 420 |
| |
|
|
