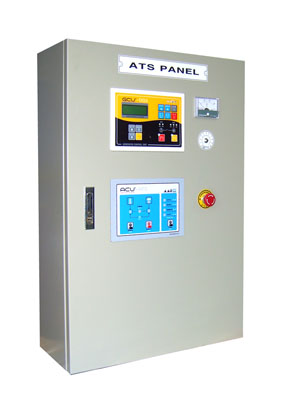

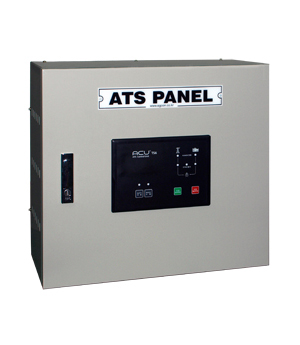

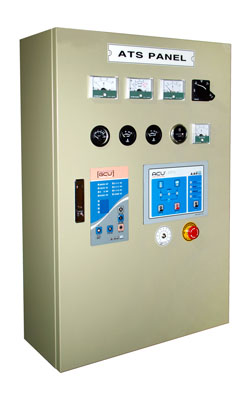

ATS-WM2   Features 1. Attachable on the wall 2. Enclosures : GCP-AL2, ACU-TS6 3. Can enclose ATS up to 400A 4. Can enclose generating power MCCB    (400A excluded) 5. Supply power to load and generator starts    when blackout 6. Merge generator control and ATS Specifications 1. Power Input : 8~32Vdc 2. Dimensions(mm) : W600 * H900 * D250     ATS-WM3 Features 1. Attachable on the wall 2. Enclosures : ACU-TS6 3. Can enclose ATS up to 400A 4. Can enclose generating power MCCB    (400A excluded) 5. UVR contact detects blackout Specifications 1. Power Input : 8~32Vdc 2. Dimensions(mm) : W600 * H550 * D250     ATS-WM5 Features 1. Attachable on the wall 2. Enclosures : GCP-AL5, ACU-TS6 3. Can enclose ATS up to 400A 4. Can enclose generating power MCCB    (400A excluded) 5. Supply power to load and generator starts    when blackout 6. Merge generator control and ATS Specifications 1. Power Input : 8~32Vdc 2. Dimensions(mm) : W600 * H900 * D250      ATS-FS5   Features 1. Stand-alone type 2. Enclosure : GCP-AL5, ACU-TS6 3. Can enclose ATS up to 600A 4. Supply power to load and generator starts    when blackout 5. Merge generator control and ATS Specifications 1. Power Input : 12/24Vdc 2. Dimensions(mm) : W700 * H1500 * D400     ATS-GM5 Features 1. Loadable on the generator 2. Enclosures : GCP-AL5, ACU-TS6 3. Can enclose ATS up to 400A 4. Can enclose generating power MCCB up to 400A 5. Supply power to load and generator starts    when blackout 6. Merge generator control and ATS Specifications 1. Power Input : 8~32Vdc 2. Dimensions(mm) : W750 * H550 * D450
