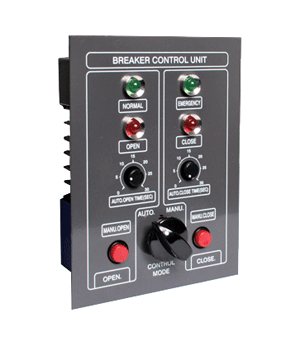

BCU-STD Features 1. Device to control ACB 2. Manual/Automatic controllable 3. Manual insert button included 4. Easy to set insert/block time 5. Commercial/generating power indication lamp    included 6. Insert/block indication lamp included 7. Just one part to control circuit breaker - simple    structure Specifications 1. Power Input : 24Vdc 2. Insert/Block Sensing Input : 220Vac 3. Insert/Block Output : 250Vac, 10A 4. Dimensions(mm) : W160 * H120 * D40 5. Mounting Holes(mm) : W60 * H150 / 5Ф * 4Holes 6. Cut-out(mm) : W110 * H136 7. Weight(g) : 780
